Page 10 - Machine installation instructions

EN

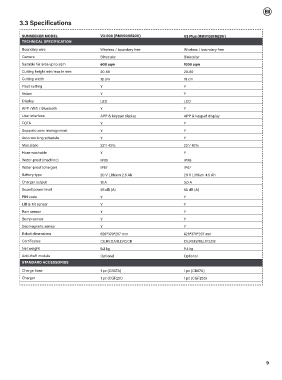

3.3 Specifications

SUNSEEKER MODEL V3-600 (RMV601M20V) V3 Plus (RMV1001M20V)
TECHNICAL SPECIFICATION
Boundary wire Wireless / boundary free Wireless / boundary free
Camera Binocular Binocular
Suitable for area up to sqm 600 sqm 1000 sqm
Cutting height min/max in mm 20-60 20-60
Cutting width 18 cm 18 cm
Float cutting Y Y
Vslam Y Y
Display LED LED
APP /Wifi / Bluetooth Y Y
User interface APP & keypad display APP & keypad display
FOTA Y Y
Separate zone management Y Y
Auto working schedule Y Y
Max slope 22°/ 42% 22°/ 42%
Hose washable Y Y
Water-proof (machine) IPX5 IPX5
Water-proof (charger) IP67 IP67
Battery type 20 V Lithium 2.5 Ah 20 V Lithium 4.0 Ah
Charger output 1.1 A 3.0 A
Sound power level 55 dB (A) 55 dB (A)
PIN code Y Y
Lift & tilt sensor Y Y
Rain sensor Y Y
Bump sensor Y Y
Geomagnetic sensor Y Y
Robot dimensions 626*370*297 mm 626*370*297 mm
Certificates CE,RED,NB,LVD,CB CE,RED,NB,LVD,CB
Net weight 9.2 kg 9.4 kg
Anti-theft module Optional Optional
STANDARD ACCESSORIES

Charge base 1 pc (CB07A) 1 pc (CB07A)
Charger 1 pc (CGF251) 1 pc (CGF253)

9
