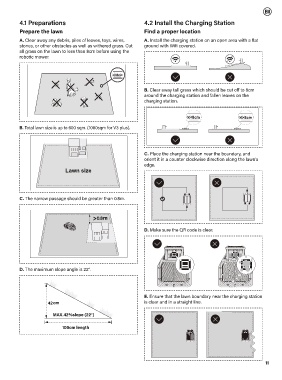

4.1 Preparations 4.2 Install the Charging Station

Prepare the lawn Find a proper location
<8cm
A. Clear away any debris, piles of leaves, toys, wires, A. Install the charging station on an open area with a flat
stones, or other obstacles as well as withered grass. Cut ground with Wifi covered.
all grass on the lawn to less than 8cm before using the
robotic mower. <8cm

<8cm
<8cm

<8cm B. Clear away tall grass which should be cut off to 8cm
<8cm around the charging station and fallen leaves on the
<8cm
>8cm
charging station.
<8cm
<8cm
<8cm <8cm >8cm

B. Total lawn size is up to 600 sqm. (1000sqm for V3 plus).
<8cm >8cm
<8cm >8cm
0.8
<8cm
>8cm
C. Place the charging station near the boundary, and
>8cm
<8cm
orient it in a counter clockwise direction along the lawn's
edge. <8cm >8cm
Lawn size 0.8
<8cm >8cm
<8cm >8cm
0.8
0.8
C. The narrow passage should be greater than 0.8m.
0.8
0.8
0.8

0.8
0.8 D. Make sure the QR code is clear.

D. The maximum slope angle is 22°.

E. Ensure that the lawn boundary near the charging station
is clear and in a straight line.
